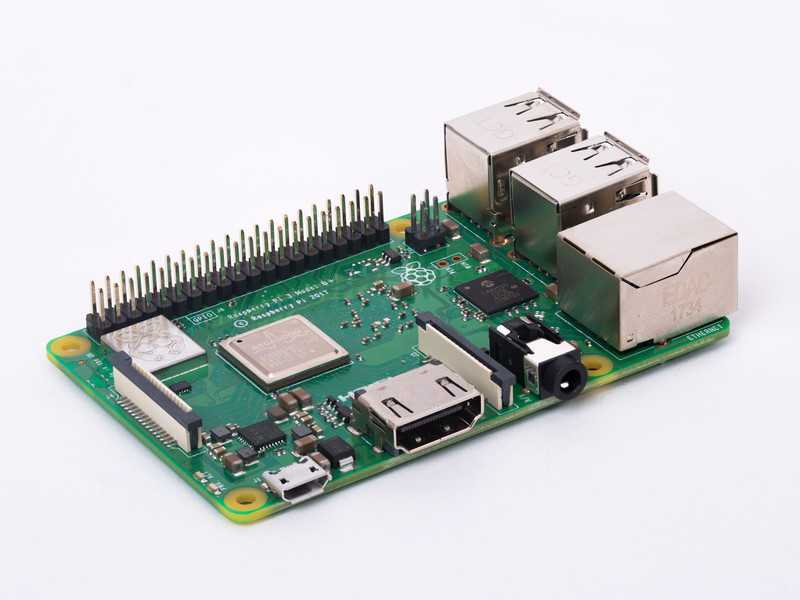

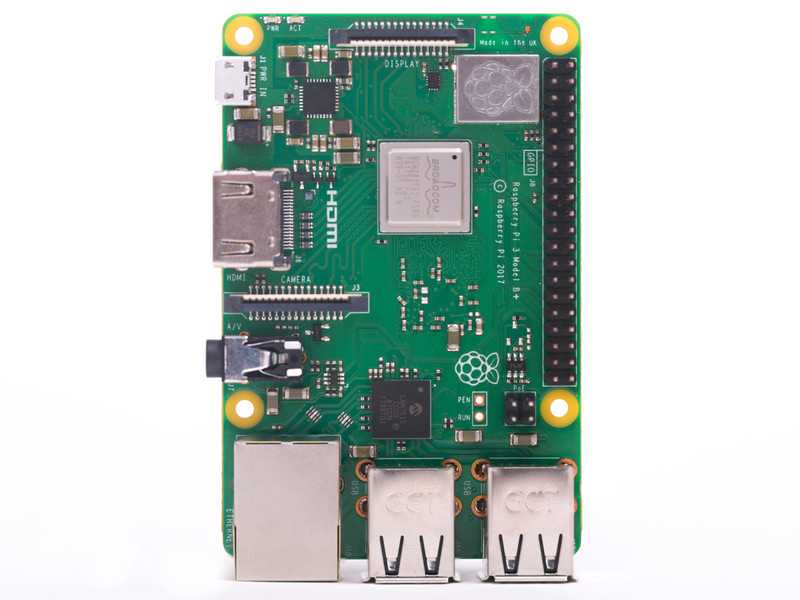

Raspberry Pi 3 Model B+

主要特点

新版Broadcom BCM2837处理器的运行频率为1 4GHzCypress结合无线/BLE芯片,可提供2.4Ghz / 5.0GHzIEEE 802.11ac无线连接,同时还拥有模块化合规认证热管理性能得到提升

高速以太网(通过USB 2.0提供的干兆以太网,最大吞吐量300Mbps支持以太网供电(PoE)的RJ45通过新的PoE HAT提供PoE功能

规格

• The Raspberry Pi 3 Model B+ is the final revision in the Raspberry Pi 3 range.

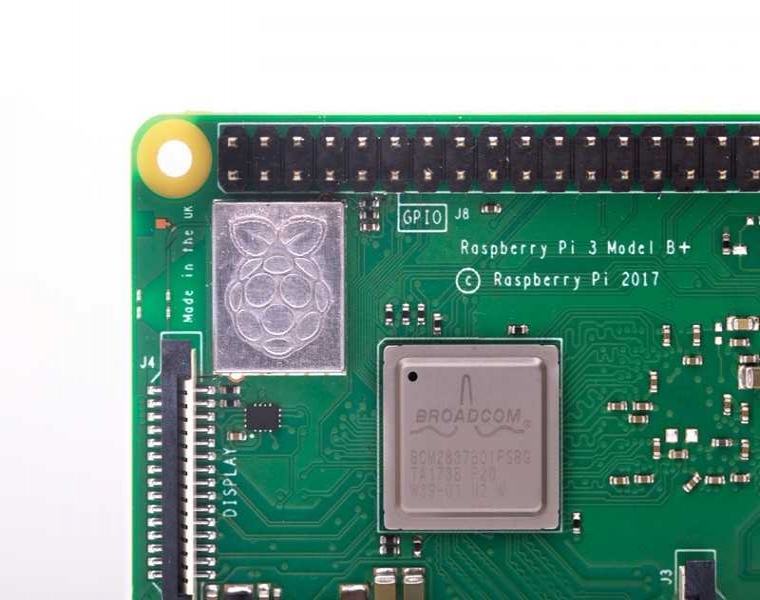

• Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz

• 1GB LPDDR2 SDRAM

• 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE

• Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)

• Extended 40-pin GPIO header

• Full-size HDMI

• 4 USB 2.0 ports

• CSI camera port for connecting a Raspberry Pi camera

• DSI display port for connecting a Raspberry Pi touchscreen display

• 4-pole stereo output and composite video port

• Micro SD port for loading your operating system and storing data

• 5V/2.5A DC power input

• Power-over-Ethernet (PoE) support (requires separate PoE HAT)

• Documents

• Raspberry Pi 3 Model B+ product brief

• Raspberry Pi 3 Model B+ mechanical drawing

• Raspberry Pi 3 Model B+ schematic diagrams

• More detailed information on Raspberry Pi hardware
